The Power To Shape Tomorrow's Automobiles
Many different parts are used to manufacture the Japanese cars that have built an excellent worldwide reputation.
Those parts are made possible by Uchida’s advanced die technology.
Here are some of the many automobile panels that are produced using Uchida dies.
* Click on the colored parts of the car illustration below to display information on different parts.
Cowl Top Inner
| Data | |
|---|---|
| Japanese | カウルトップインナー |
| Board thickness | 0.7 |
| Material | SCGA270 |
Dash Panel
| Data | |
|---|---|
| Japanese | ダッシュパネル |
| Board thickness | 1.0 |
| Material | SPC270 |
Radiator Support
| Data | |
|---|---|
| Japanese | ラジエーターサポート |
| Board thickness | 1.0 |
| Material | SPG-590 |
Spring Support
| Data | |
|---|---|
| Japanese | スプリングサポート |
| Board thickness | 1.8/2.6/1.8 |
| Material | SHGA-270 |
Front Pillar
| Data | |
|---|---|
| Japanese | フロントピラー |
| Board thickness | 1.4/2.0 |
| Material | SCGA-270/SCGA-440 |
FR BODY PLR LWR
| Data | |
|---|---|
| Japanese | フロントピラーロア |
| Board thickness | 1.0/1.6 |
| Material | SPC590/SCGA980 |
LONGIT
| Data | |
|---|---|
| Japanese | フロントサイドメンバ |
| Board thickness | 2.2 |
| Material | BH260 |
PLR CTR BODY INR
| Data | |
|---|---|
| Japanese | センターピラーインナー |
| Board thickness | 0.8 |
| Material | SCGA590 |

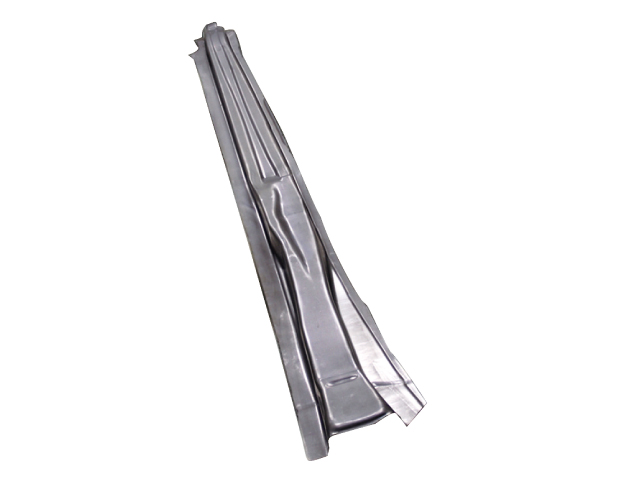

Center Pillar
| Data | |
|---|---|
| Japanese | センターピラー |
| Board thickness | 1.4/1.2 |
| Material | SPC-980/590 |
Lower Back
| Data | |
|---|---|
| Japanese | ロアバック |
| Board thickness | 0.65 |
| Material | SPC-270 |
Upper Back
| Data | |
|---|---|
| Japanese | アッパーバック |
| Board thickness | 1.6 |
| Material | SPC-440 |
Roof
| Data | |
|---|---|
| Japanese | ルーフ |
| Board thickness | 1.0 |
| Material | SPC-590 |
Cowl Top Inner
Dash Panel
Radiator Support
Spring Support
Front Pillar
FR BODY PLR LWR
LONGIT
PLR CTR BODY INR
Center Pillar
Lower Back
Upper Back
Roof
